Cutting Blades

SE20 is a single edge, very fine oscillating blade with minimal overcut made of strong carbide steel. It is designed for cutting intricate detail and small radii. The tip of SE20 has a 63 degree cutting angle which then tapers to 84 degrees to allow for cutting of foamboards, flexible plastics and corrugated plastics up to 14mm thick. Equivalent to Kongsberg BLD-SF420 and Zund Z20 blades. Pack contains 2 blades.

VTX-K1 blade for kiss cutting any standard self-adhesive backed vinyl with a 35 blade angle. Similar to the VTX-K2. Compatible with Kongsberg XP/C, Zund G3 & S3, Gerber MCT and the Cutworx Apex Series. Pack contains 1 blade.

VTX-K12 is a double-edged, two tipped, blade for universal cutting applications. Same cut parameters as the Z10 but with two tips to double usable cut life. Similar to VTX-K13, but with larger overcut and longer cut life than the VTX-K13. Maximum cut length is 4.8mm. Equivalent to Zund Z12 and Kongsberg BLD-DF212 blades. Pack contains 1 double ended blade.

VTX-K12s is a double-edged blade for universal cutting applications. Same design as the VTX-K12 but with a shorter shank length for use with certain table manufactures. Similar to VTX-K13s, but with larger overcut and longer cut life. Pack contains 1 blade.

VTX-K13 is a sword-like, robust flat 1.5mm thick blade with double edge 60/60 degree cutting tip for drag knife cutting. Made to slice through hard and soft foams, corrugated plastics and paper boards, magnetic and plastics such as polypropylene and foam pvc. In addition, the carbide K13 is dual tipped so once one tip is blunt, take it out of the tool holder, flip it around and its like a new blade again. Similar to VTX-K12 but with a smaller...

VTX-K13r is a double-edged blade with 8mm diameter cylindrical shank providing high rigidity for dense material/ high force cutting applications. Same cut parameters as the Z11 and VTX-K13 but with much higher rigidity. Similar to VTX-K12r, but with less overcut and longer life expectancy. Pack contains 1 double ended blade.

VTX-K2 blade for kiss cutting any standard self-adhesive backed vinyl with a 35 blade angle. Similar to the VTX-K1, but exerts less drag force which results in a shorter life expectancy. Compatible with Kongsberg XP/C, Zund G3 & S3, Gerber MCT and the Cutworx Apex Series. Pack contains 1 blade.

VTX-K534 Summa 36 tangential blade suitable for kiss cutting normal to thin vinyls and masking films, normal letter size. Compatible with most Summa roll cutters. Pack contains 1 blade.

VTX-K572 is a double-angle arrow-shaped carbide blade for the VIxx-16 V-notch insert tools. Has superb performance in materials like Kappa and other foamed core board. Works also well in materials such as fluted core boards and triple wall corrugated. Requires Kongsberg VI45-16 and VI30-16 V-Notch tool insert.

VTX-K8124r is a rigid cardibe steel single-edge drag blade for v-cutting applications. It is suitable for corrugated and engineered cardboard, light plastics and foams. The maximum cutting depth is 10mm, depending on blade holder. Equivalent to the Kongsberg BLD-SR8124 and Cutguru SE81R blade. Pack contains 1 blade.

A 8mm diameter cylindrical shank with a max cut length of 5mm. For drag cutting of thin paper and folding carton. Works well on very fragile and porous materials paper pulp materials that contain high recycled content. Pack contains 1 blade.

VTX K-HS10 is a high strength steel drag blade. Same design as the Zund Type 6 blade. For using in paper board and corrugated paper products. 0.63mm thick robust drag blade for cutting a variety of materials. The cutting tip has a 35 degree tip angle. Often used for sample making. Blades are sold in packs of 10.

VTX-K-HS73 is a flat trapeziod shaped steel cutting blade with 20 degree angles on both sides for v cutting. It can cut a maximum thickness of 18mm and is suited to cutting corrugated plastic and paper boards as well as foam boards. Equivalent to Kongsberg BLD-TZ129 and Zund Z73 blades. Pack contains 10 blades.

VTX-K16, our most popular and versatile flat blade, is made of durable cardbide steel, incorporating a 53.2 degree cutting tip angle. It has a single cutting edge which can cut thick substrates up to 7.4mm thick including soft and hard foams such as Fome-Cor and Forex, , polypropylene, polystyrene, corrugated plastic and cardboard including Dispa. VTX-K16 is also suited for cutting thinner media such as self adhesive vinyl including reflective,...

VTX-K17 knife blade is for the cutting of thin materials. Less overcut but exerts more drag than the VTX-K16. For best results, use with an oscillating tool. VTX-K17 is a flat blade, is made of durable cardbide steel, incorporating a 65 degree cutting tip angle. It has a single cutting edge which can cut substrates including VTX-K16 is also suited for cutting thinner media such as self adhesive vinyl including Foam Board, Fome-Cor, Matboard,...

VTX-K17rh has a 6mm diameter cylindrical shank providing high rigidity for oscillate and drag cutting of denser materials. Similar to the VTX-K17r but has swept cutting edge for better performance in thicker materials. For best results, use with an oscillating tool. Pack contains 1 blade.

VTX-K20 is a single edge, very fine oscillating blade made of carbide steel with minimal overcut. It is designed for cutting intricate detail and small radii. The tip of VTX-K20 has a 63 degree cutting angle which then tapers to 84 degrees to allow for cutting of foamboards, flexible plastics and corrugated cardboards and plastics up to 14mm thick. Equivalent to Kongsberg BLD-SF420 and Zund Z20 blades. Pack contains 2 blades.

VTX-K21 is a single edge, very fine oscillating blade made of carbide steel with minimal overcut. It is designed for cutting intricate detail and small radii. The tip of VTX-K21 has a 63 degree cutting angle which then tapers to 84 degrees to allow for cutting of foamboards, flexible plastics and corrugated cardboards and plastics up to 17.2mm thick. Equivalent to Kongsberg BLD-SF421 and Zund Z21 blades. Pack contains 1 blade.

Similar to VTX-K20 but more robust with slight more overcut. Designed to cut small radii and intricate detail.

VTX-K23 is a Long fine tipped blade designed to cut small radii and intricate detail. The tip of VTX-K23 has a 84 degree cutting angle which then tapers to 130 degrees to allow for cutting of foamboards, flexible plastics and corrugated cardboards and plastics.

VTX-K28 is a long oscillating blade designed for cutting soft and thick materials such as foam, honeycomb, and corrugated board. The cutting tip has an initial 45 degree tip angle and is 0.63mm thick. K28 is the equivalent to Zund Z28 and Kongsberg BLD-SF428 blades. Pack contains 1 blade.

VTX-K3 is a fine, long-life, double-edged blade for kiss cutting small lettering on standard self-adhesive backed vinyl and masking film. Fine blade for creating small lettering with a blade angle of 35 degrees. Compatible with Kongsberg: XP/C, Zund: G3, S3, Gerber: MCT & Cutworx: Apex Series. Pack contains 1 blade.

VTX-K46 is a 1.5mm thick robust drag blade for cutting a variety of materials. The cutting tip has an initial 45 degree tip angle when then flattens to 90mm. VTX-K46 is often used for foamboards up to 20 mm thick. The blade exerts little drag force, but has a larger overcut. K46 is the equivalent to Zund Z46 and Kongsberg BLD-SF346 blades. Pack contains 1 blade.

VTX-K46r is a 8mm diameter cylindrical shank providing high rigidity for drag cutting of denser materials with a maximum cut length of 20mm. Often used for foamboards up to 4.75 mm (3/16 inch). The blade exerts little drag force, but has a larger overcut.

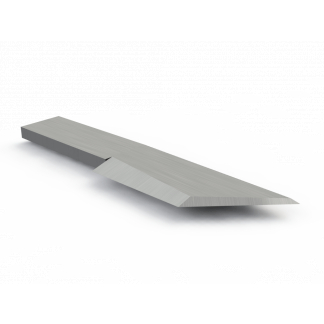

VTX-K46s is a 1.5mm thick robust drag blade for cutting a variety of materials. The cutting tip has an initial 45 degree tip angle when then flattens to 90mm. Same design as the VTX-K46 but with a shorter shank length for use with certain table manufactures. Robust blade for variety of materials. Often used for foamboards up to 4.75 mm (3/16 inch). The blade exerts little drag force, but has a larger overcut.

Decagon (10-sided) blade similar to VTX-K51 and VTX-K52, but with reduced overcut and can apply greater cutting forces. Equivalent of Zund Z50 and Kongsberg BLD-RC110 blades. Pack contains 1 blade.

VTX-K60 blade for oscillate cutting of intricate detail and small radii. Provides for low overcut. Similar design to the K21 but with thicker shank for higher rigidity.

VTX-K61 is a single edge, very robust oscillating blade made of carbide steel. It is designed for cutting a wide range of heavy duty materials. The tip of VTX-K61 has an 81.5 degree cut angle to allow for cutting of foamboards, flexible plastics and corrugated cardboards and plastics up to 20mm thick. Equivalent to Zund Z61 blades. Pack contains 1 blade.

VTX-K68 is a single edge, heavy duty oscillating blade made of carbide steel and is designed for cutting heavier and thicker products. The tip of VTX-K68 has an 83 degree cutting angle and a 5 degree bottom cutting tip which is perfect for cutting foamboards, sandwhich / corrugated plastic or cardboards up to 29mm thick. Equivalent to Zund Z68 blades. Pack contains 1 blade.

VTX-K70r is a single-edged blade with 8mm diameter cylindrical shank providing high rigidity for materials such as folding carton, polyester film, leather, vinyl and paper. Pack contains 1 blade.

VTX-K71 is a rigid cardibe steel single-edge drag blade for v-cutting applications. It is suitable for corrugated and engineered cardboard, light plastics and foams. The maximum cutting depth is 18.4mm, depending on blade holder. Equivalent to Zund Z71 blade. Pack contains 1 blade.

VTX-K74r is a single-edged blade with 8mm diameter cylindrical shank for corrugated board, folding carton with a 30' cutting edge. Pack contains 1 blade.

VTX-K8174rc is a single-edged blade with 8mm diameter cylindrical shank providing high rigidity for materials such as folding carton, polyester film, leather, vinyl and paper. Coated for prolonged edge life. Pack contains 1 blade.

SE61 is a flat, robust, heavy-duty oscillating blade made of carbide steel, with a 5/80 degree single-edge cutting face. It is suitable for cutting corrugated and engineered cardboard as well as corrugated plastic. The maximum cut depth is 20mm. Equivalent to Zund Z61 blade. Pack contains 1 blade.
